OIL-FREE WATER-LUBRICATEDSCREW COMPRESSOR

永磁變頻無油水潤滑螺桿空壓機

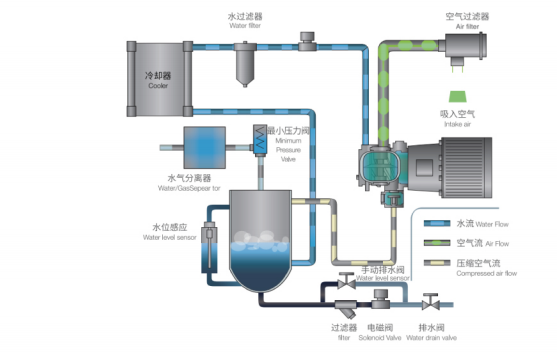

壓縮機組系統流程圖

COMPRESSOR SYSTEM FLOW CHAT

產品優勢 Product Advantages

1.智能精密加工工藝讓主機運行平穩，確保更低噪音、更小震動及更長使用壽命。

The intelligent precision processing tech-nology ensures the smooth operation ofthe main unit, guaranteeing lower noise,less vibration and a longer service life.

2.更寬的壓力范圍:2bar~40bar。運行溫度小于50”C，沒有被灼傷的風險

Wider pressure range: 2bar to 40barThe operating temperature is less than50°C, and there is no risk of burns.

3.可實現定期自動換水和自動系統清洗功能，壓縮機內部更加整潔、衛生。

It can achieve regular automatic waterchange and automatic system cleaningfunetions, making the interior of the com-pressor cleaner and more hygienic.

4.壓縮空氣經過潤滑水的清洗，更加潔凈可以直接用于呼吸使用，飽和壓縮空氣的更低，壓縮空氣的含水量比普通干式螺桿空壓機平均低25%以上。

Compressed air, after being cleaned withlubricating water, becomes cleaner andcan be directly used for breathing. Thedew point of saturated compressed air islower,and the water content of com-pressed air is on average 25% lower thanthat of ordinary dry screw air compressors.

5.采用大轉子、低轉速(3000r/min以內)，沒有齒輪箱，采用直連驅動，相比干式無油螺桿(10000r-20000r/min)更低轉速，更長壽命。

It adopts a large rotor, low rotationalspeed (within 3000r/min), no gearbox, anddirect drive, Compared with dry oil-freescrews (10,000 rto 20,000 r/min), it has alower rotational speed and a longerservice life.

6.采用PLC智能控制，具有自動故障檢測及預警、保養提醒、自動保護功能，可遠程控制，實現24小時無人值守。

It adopts PLC intelligent control andfeatures automatic fault detection andearly warning, maintenance reminder, andautomatic protection functions. It can beremotely controlled to achieve 24-hourunattended operation.
